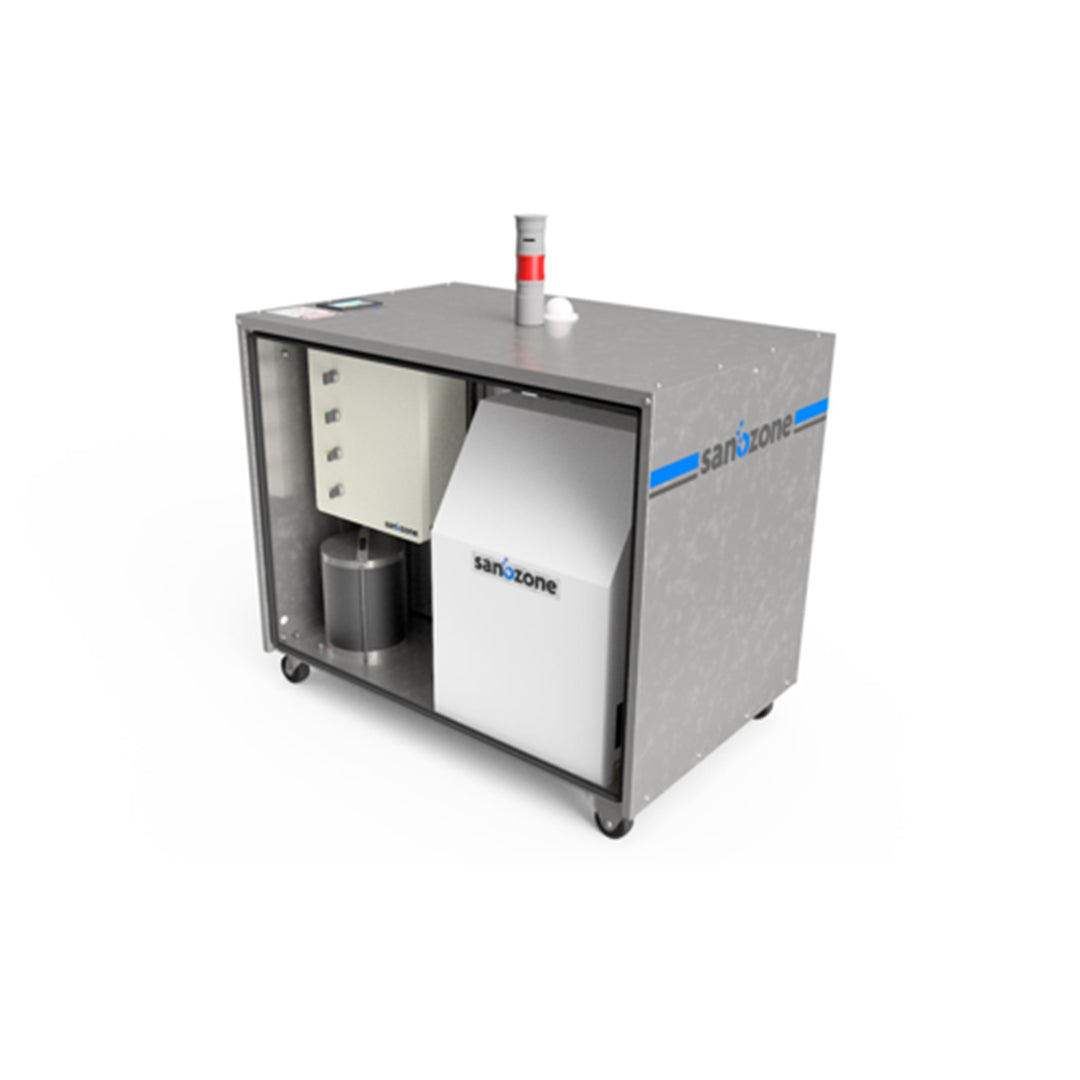

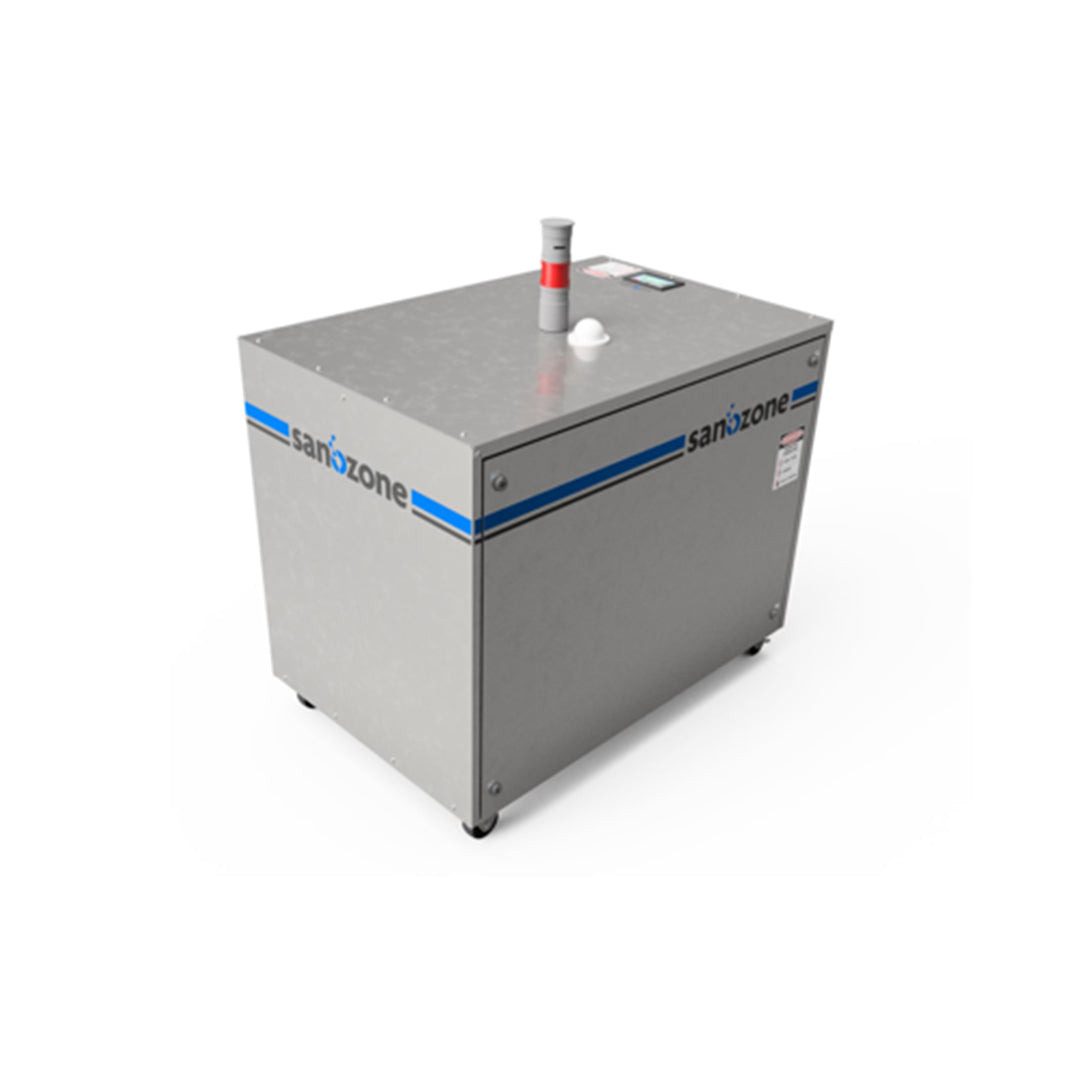

SANOZONE Model 400

Shipping calculated at checkout.


Health Canada Approved Effective Against COVID-19

SANOZONE is a chemical-free pathogen eradication technology. It safely eradicates viruses, bacteria, and other pathogens from all surfaces within a decontamination zone. Providing peace of mind to staff, customers, and business owners. These units can be used to decontaminate any enclosed unoccupied spaces such as;

  • Warehouses
  • Offices
  • Buses
  • Trains
  • Restaurants
  • Universities, schools, and gymnasiums
  • Medical facilities

Safe, Scalable, Portable

SANOZONE systems are engineered to operate safely in unoccupied spaces via;

  • An intelligent automated industrial control system
  • Safety alarms, sensors and shutdowns
  • Proprietary technology that rapidly converts ozone back to oxygen for safe re-entry

SANOZONE systems can be installed into independent HVAC systems or operated separately, giving you the flexibility to design the ideal system for your situation.

Ozone Purification with SANOZONE

SANOZONE intelligent software allows trained operators to remotely operate the unit within an unoccupied space. Filling the unoccupied space, ozone envelops and uniformly purifies all surfaces and reaches deeply into fabrics.

Ozone is used to break through the outer lipid wall of viruses, bacteria, and other pathogens, rendering them inactive.

SANOZONE Model 400 Specifications

Designed for spaces up to 80,000 square feet (7,432 sq. m)

CSA/UL approved

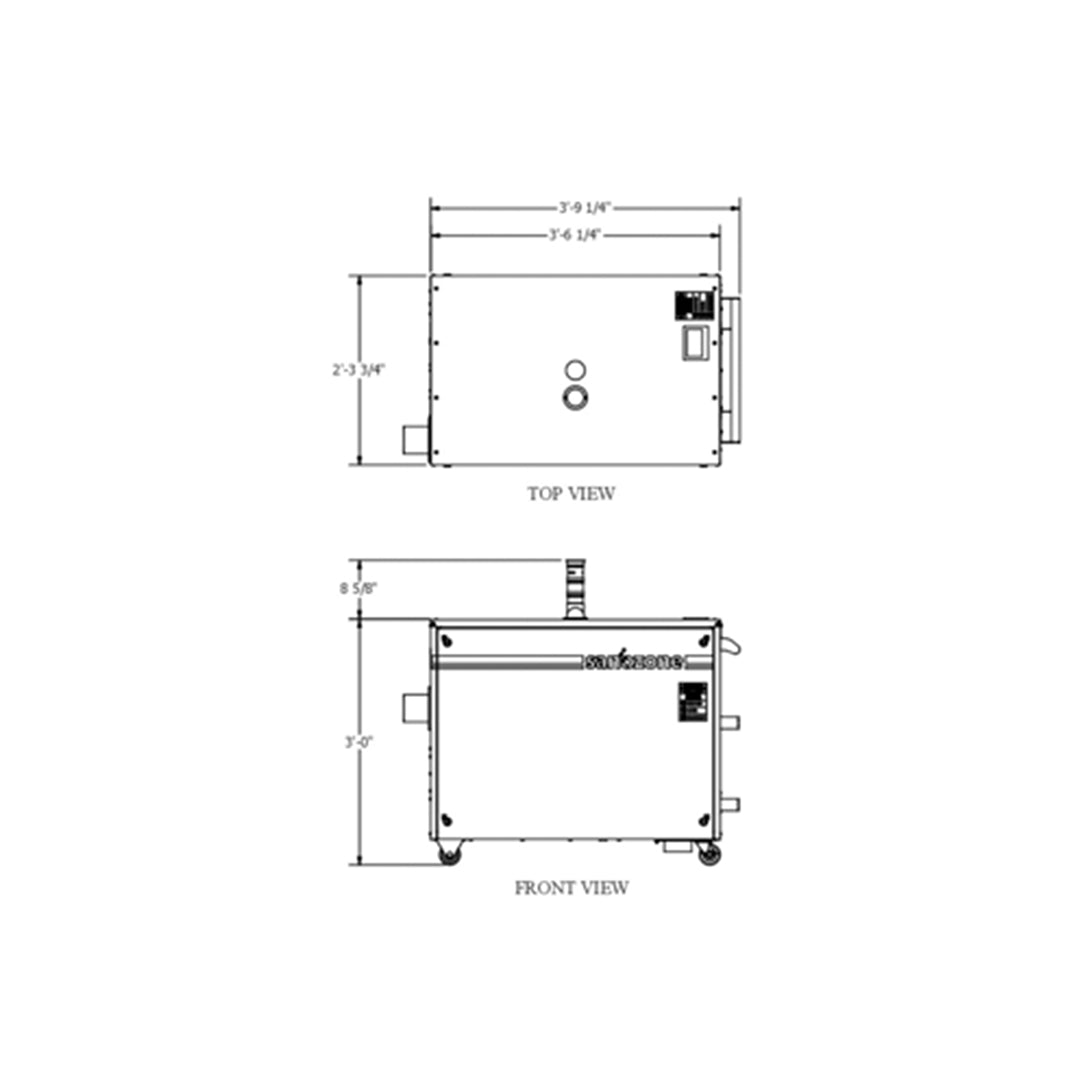

 Size
Width: 2’ 3 3/4” - 711 mm
Length: 3’ 9 1/4” - 1148 mm
Height: 3’ 8 5/8”. - 1158 mm
Weight 390 lbs / 178 kgs (approx.)
Construction
Frame and cover panels –304 stainless steel
Casters – front swivel, back fixed, lockable and non-marking
O2 Concentrator – oil-less, pressure swing absorption
Model 10 O3 Generator – pressurized, plasma block, 4-20 ma controlled
Controls
109mm (4.3”) micro-touch screen
SANOZONE App
Ethernet switch for IoT compatibility
Panel mounted ethernet bulkhead
Panel mounted alarm lights
Safety - stack light with built in (audible alarm / red light)
SANOZONE ozone sensor
Rating CSA/UL approved
Power 230 VAC, 50/60 Hz, 1 Phase, 20 Amp
